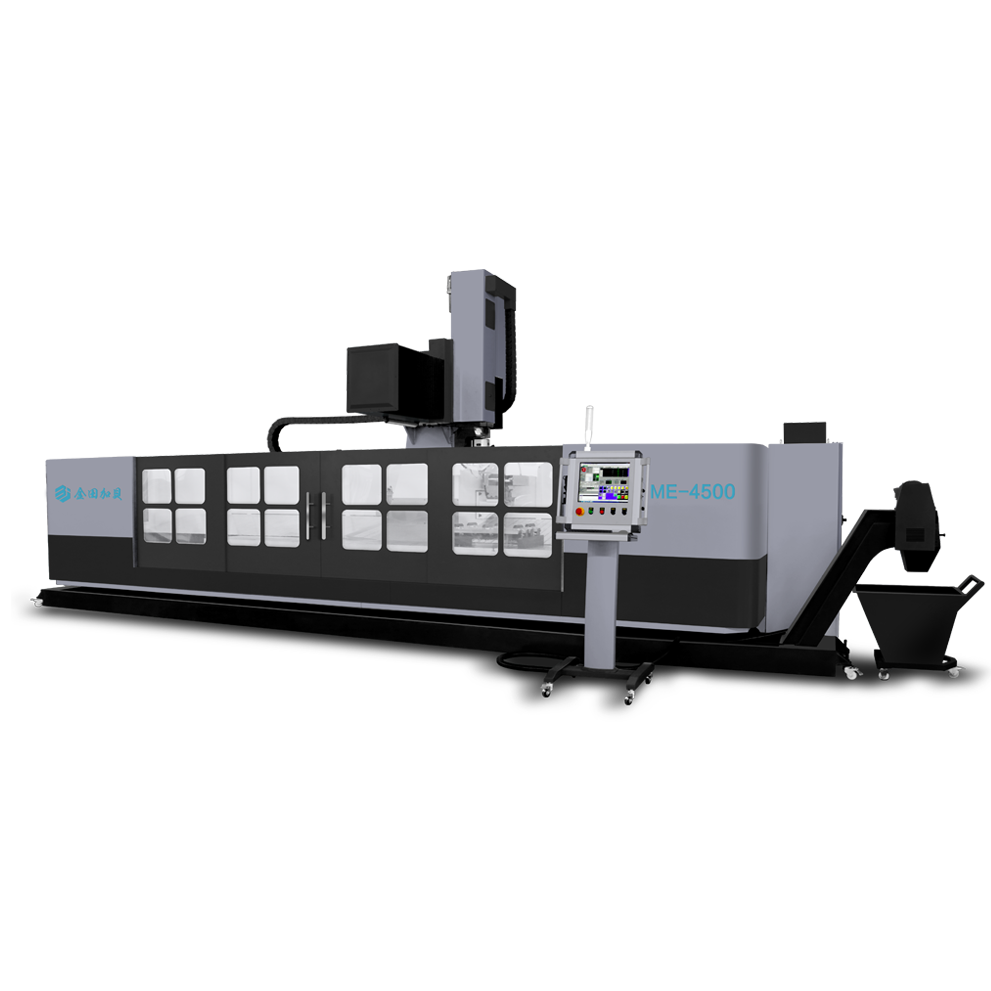

ME-4500 Profile machine center

Five-Axis Processing Center, Aluminum CNC Machine, CNC Router, Acrylic, Wood, Aluminum
Quantity:
Inquire Add to Basket

  • ME-4500

  • kellow

Features

Features:

1. The machine is a complex working center integrating milling, drilling, tapping, etc.
2. The finite element analysis mechanism is used to obtain the optimal mechanical properties and ensure the overall rigidity of the equipment.
3. The base, column, beam, sliding seat, spindle box etc., with high rigidity and accuracy.
4. Equipped with automatic chip cleaner.

Applications:
    Process all kinds of aluminum profile, PVC, wood, etc.




Configuration:
  • OSIA or Siemen (system)
  •  Delta inverter 18KW
  • Taiwan reducer
  • Yaskawa servo motor 3KW,Z with brake
  • Rexroth guide rail
  • X axis with YYC helical rack,Y,Z  axis with PMI screw drive
  • Automatic lubrication and Dustproof
  • Italy HSD water cooling spindle 12KW ,more rigid than air cooling spindle
  • YAKE air conditioner protects electrical elem

Application

Process all kinds of aluminum profile,PVC,wood,etc.

Technical parameters

                                 Model ME-4500
Items Parameter
Working Stroke X axis 4500mm
Y axis 600mm
Z axis 500mm
A  axis            +/-120°
 C  axis +/-245°
Accuracy Machining accuracy 0.05mm
Repeatable positioning accuracy 0.02mm
Speed Max idle speed 30000mm/min
Max working speed 3000-5000mm/min

spindle		 power 9KW （HSD)
revolution 0~24000r/min
Motor Yaskawa servo motor
Working voltage AC 380V
system OSIA/SIEMENS
size 6500mm×2400mm×2400mm
Net weight ≈7000kg
Gross weight ≈7300kg
