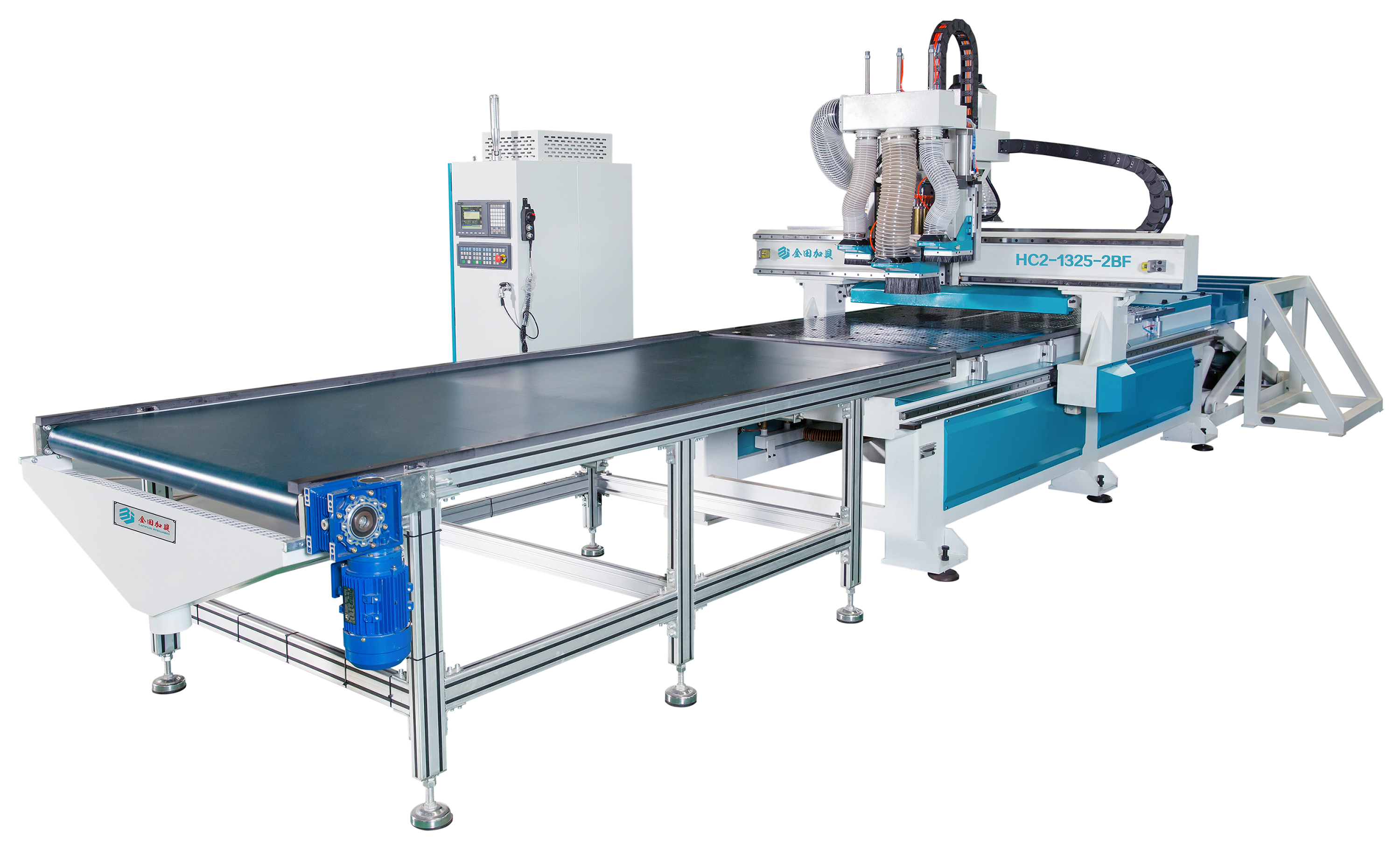

HC2-1325-2BF two spindle drillling automatic loading and unloading machining center

Two spindles+drilling+loading and unloading machining center
Quantity:
  • HC2-1325-2BF

Technical Parameter

Table Table size 1220× 2440 mm
Max.working stroke X 1840 mm
Y 3300 mm
Z 250 mm
Rapid speed X&Y 50M/min
Z 15M/min
Main power spinle China manual aircooling /6kw/18000rpm
spinle Italy HSD manual aircooling /6kw/aircooling
drilling FAM 9V 2HP(1.5KW)
Water pump 7.5kw-250m3/h
System Brand SYNTEC
Model 6MB
magazine type manual

Features:
●Automatic loading and unloading, cutting, vertical drilling, unbroken in the whole process. It saves time and maximizes efficiency
●Humanity control system, it is friendly and convenient to control
●Imported Yaskawa servo motor and liming reducer, Schneider electrical part and more stable performance.
● With powerful vacuum table, can adopt different materials in different size.

Applications:
 Panel furniture, cabinets, wardrobes, office furniture, customization furniture.

Configuration

Standard Configuration:
1. Italy HSD 6kw spindle.
2. Chinese brand 6kw spindle.
3. pneumatic drilling FAM 9V 2HP(1.5KW).
4. Taiwan LIMING reducer.
5. FULING inverter   380V   7.5KW*2.
6. YASKAWA servo motor 850W(Z brake).
7. X&Y helical rack drive(Herion)/Z screw drive(PMI)/guide rail(PMI).
8. SYNTEC 6MB control system.
9. automatic  oil lubrication.
10. water cycle vaccum pump 7.5kw-250m3/h
11. manual  tool change .

Option Configuration
2 Chinese brand spindles 6kw
