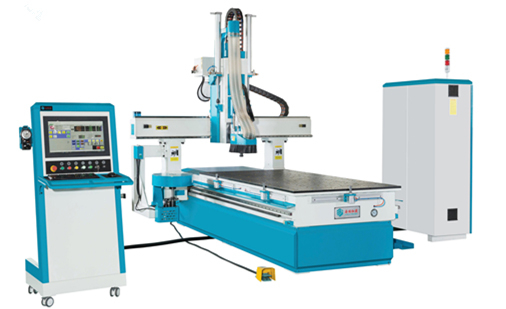

CA-48T Furniture,wooden door, cabinet door,curved wooden chair,curved cabinet door, drill for holes of hinge

Quantity:
  • CA-48T
  • camplus

Product Description

Features:
    1.High rigidity body structure design, more stable;
    2.Adopt linear guide rail ,screw drive from Taiwan;
    3.Excellent components;
    4.Four axis linkage processing;
    5.Tilt servo control spindle ,positioning procesing from any angle,rotating stroke +/-95 degrees

Configuration:
  1. Syntec system
  2. Delta inverter 380V 15KW*1
  3. Italy HSD 12KW (air cooling)
  4. Japan Yaskawa servo motor, Z axis with brake
  5. Z axis screw drive
  6. Four axises (X/Y/Z/A)
  7. Carousel type tools magazine    ( 8pcs )
  8. Automatic lubrication
  9. Vacuum pump
  10. Famours reducer
  11. phenolic compact laminate
  12. Table size: 1300*2500MM
  13. Max.working stroke: 1320*2540*650mm
  14. Wooden package
  15. Compatible with any other advanced software of CAM in the world:Type3/Artcam/Castmate/Pro-E/CAXA/Artcut/UG  etc.
Options:
  1. Linear type tools magazine
  2. Customize
Applications:

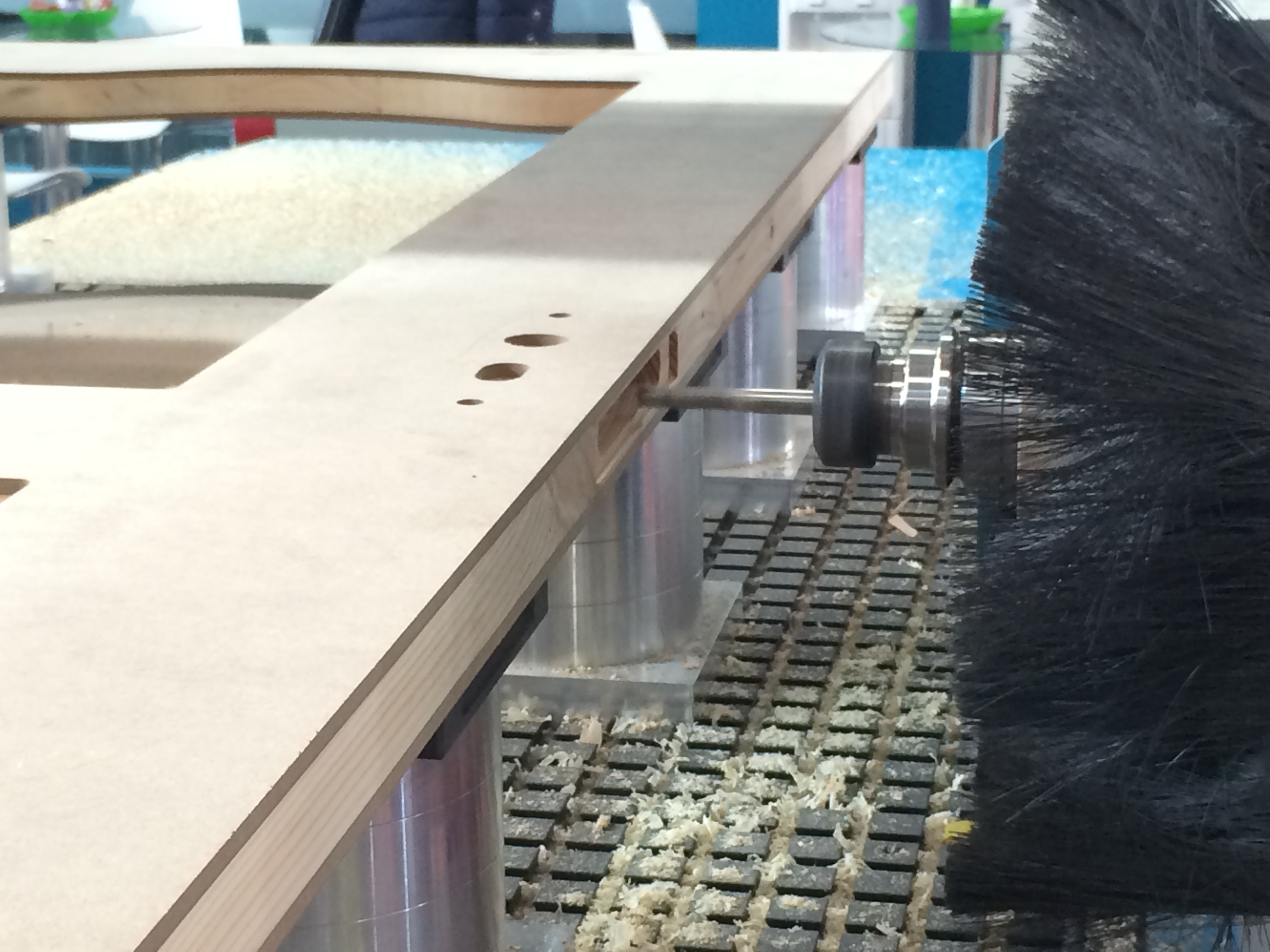

       Furniture,wooden door, cabinet door, chair, drill for holes of hinge lockhole etc.








If you have any question, please contact us, we will reply you in 24 hours!
