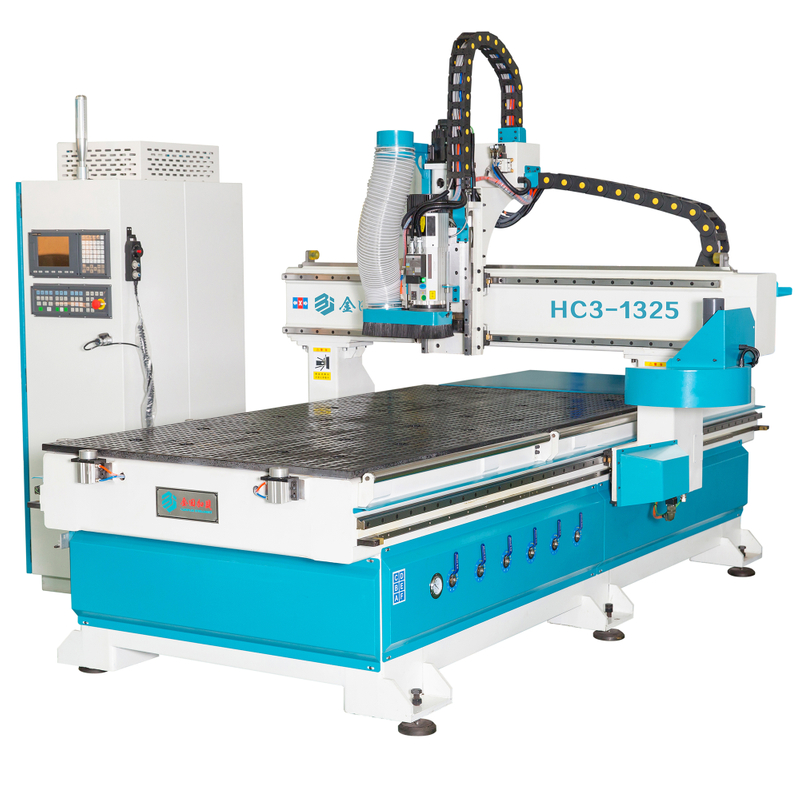

HC3-1325 Automatic Tooling Changing CNC Machine

Automatic knife changing processing center

Quantity:
  • HC3-1325
  • camplus

Technical Parameter

Table Table size 1220× 2440 mm
Max.working stroke X axis 1320 mm
Y axis 2540 mm
Z axis 300 mm
Rapid speed X&Y axis 50M/min
Z axis 15M/min
Main power Spindle power HSD/9.6KW/ISO30/24000RPM
Water pump 7.5kw-250m3/h
System Brand SYNTEC
Model 6MB
Knife Shape circular tool magazine with 12 tools
HC3-1325 Standard configuration:
  1.  Italy HSD 9.6KW spindle
  2.  Imported reducer
  3. Delta inverter 380V 11KW*1
  4. Yaskawa servo motor 850W(Z axis brake)
  5. X&Y axis with helical rack/ Z axis with screw drive
  6. SYNTEC 6MB control system
  7. Automatic lubrication
  8. Vacuum pump 7.5kw-250m3/h
  9. 12pcs tools with disk type and automatic tool changing
 Features:
1.With tools library, solid structure.
2.The vacuum table can adopt different materials in different sizes, and also can fix all kinds of special materials with clamps, conveniently.
3.12pcs of tool, tool change fast and simple.
4.High speed, high efficiency, high accuracy, smooth bottom surface and clear outline.

Applications:
1.Furniture: cabinet door, wooden door, solid wood, plate type, door and window, table and chair.
2.Wooden products: speakers, game cabinets, computer tables, sewing machines, musical instruments.
3.Decoration industry: screen, wave board, large wall hanging, advertising boards, logo production.

Configuration

Standard Configuration:
1. Italy HSD 9.6KW Spindle
2. TAIWAN LIMINNG speed reducer
3. 380V   11KW*1  DELTA inverter
4. yaskawa servo 850W(Z axis baark )from Japan
5. X&Y axis helical  rack drive (Herion)/z axis screw drive (PMI )/guide rail(PMI)
6. SYNTEC 6MB control system
7. Atomatic oiling
8. Water cycle vacuum pump 7.5KW-250m3/h
9. circular tool magazine with 12 tools

Optional Configuration:
1. tool magazine with 16/20 tools
2. 750W(Z axis baark )from Japan
3. blevile of push
